SR 31 Dew Drop Inn Bridge

Responsibilities

  • Survey
  • Easement Right-of-Way Plans
  • Base Mapping
  • Courthouse Research
  • Utility Coordination

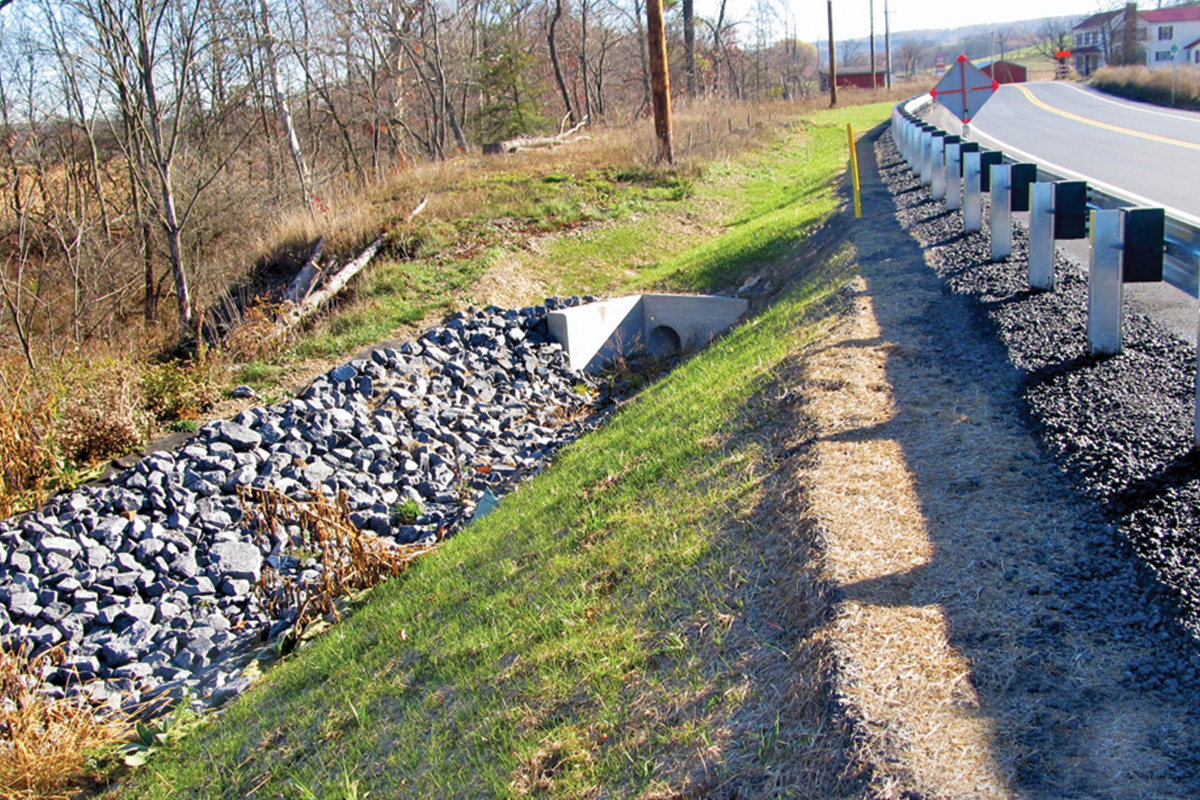

  • Hydrology and Hydraulics
  • Drainage Design
  • Permitting
  • Preliminary and Final Design of Replacement Bridge
  • Preliminary and Final Design Roadway/Highway - Rehabilitation
  • Preliminary and Final Design Roadway/Highway - Safety improvements
  • Traffic Control
  • Erosion Control/NPDES Permitting

Owner

PennDOT District 9-0, Bedford County

Project Details

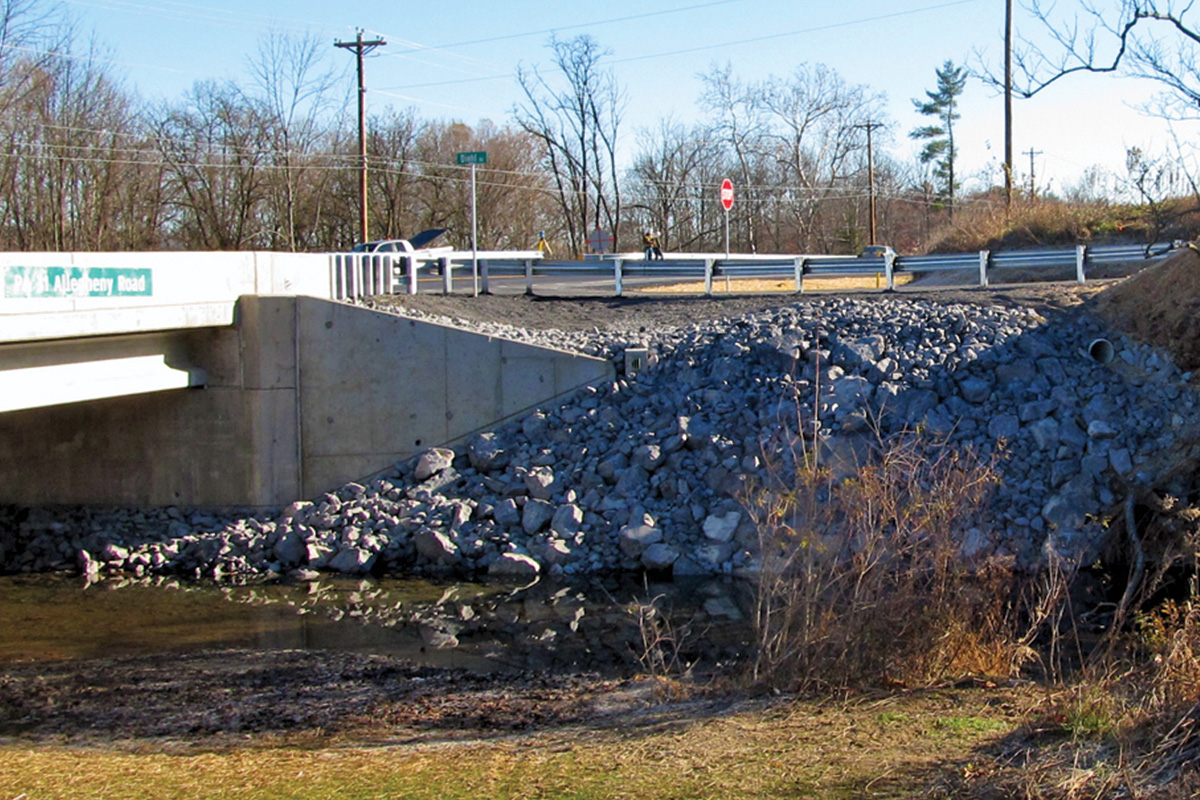

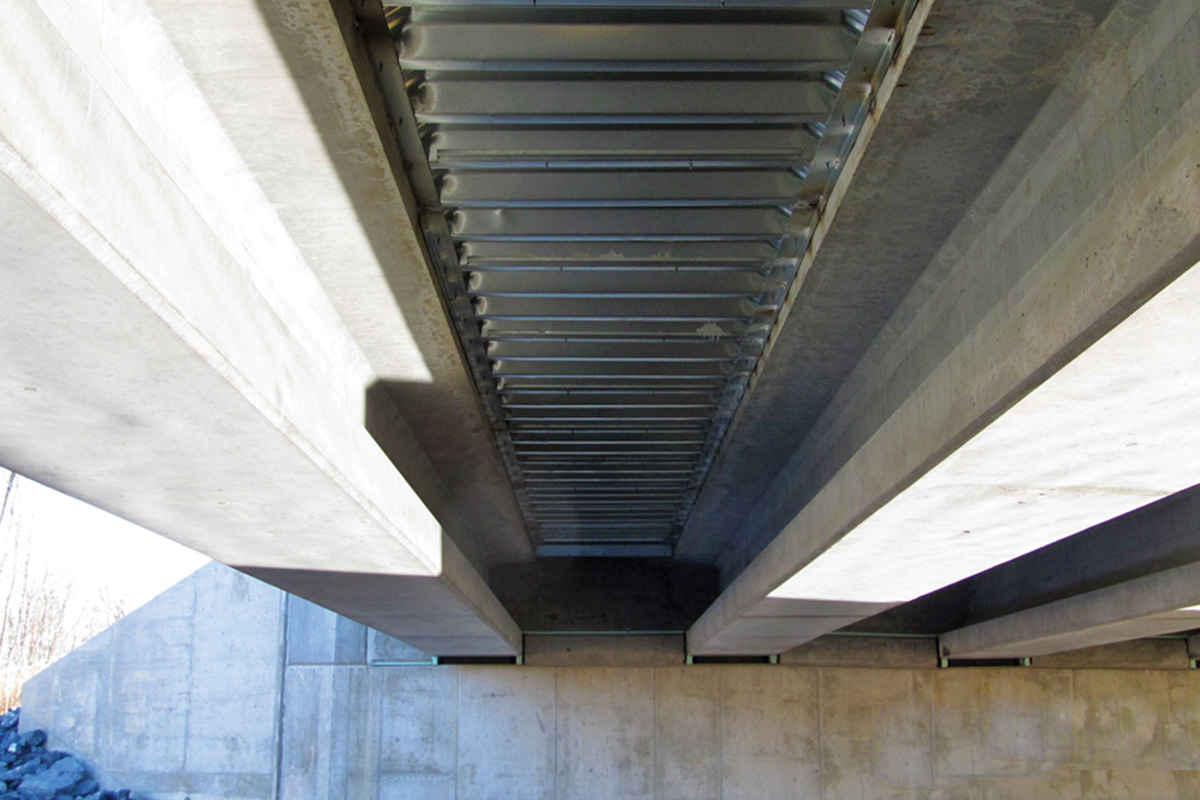

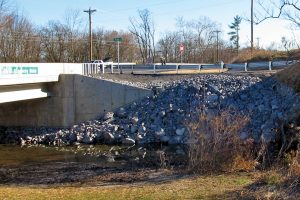

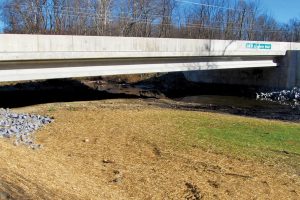

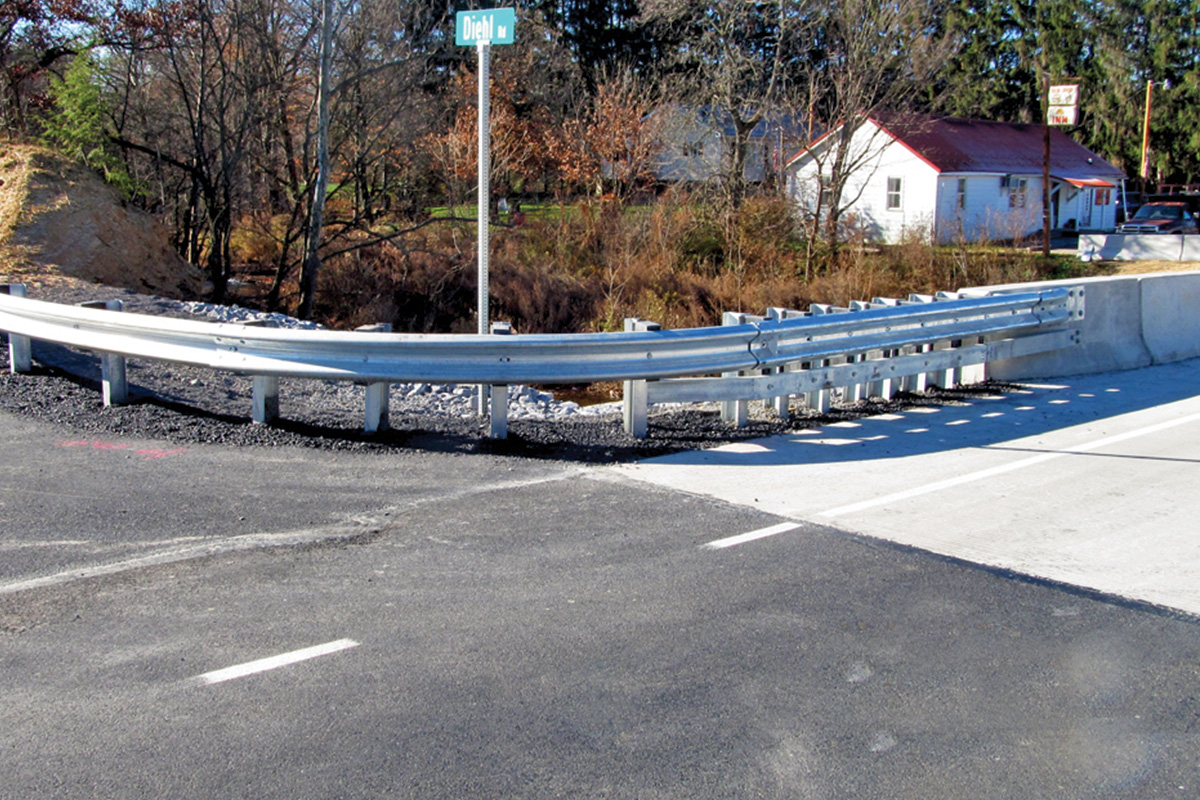

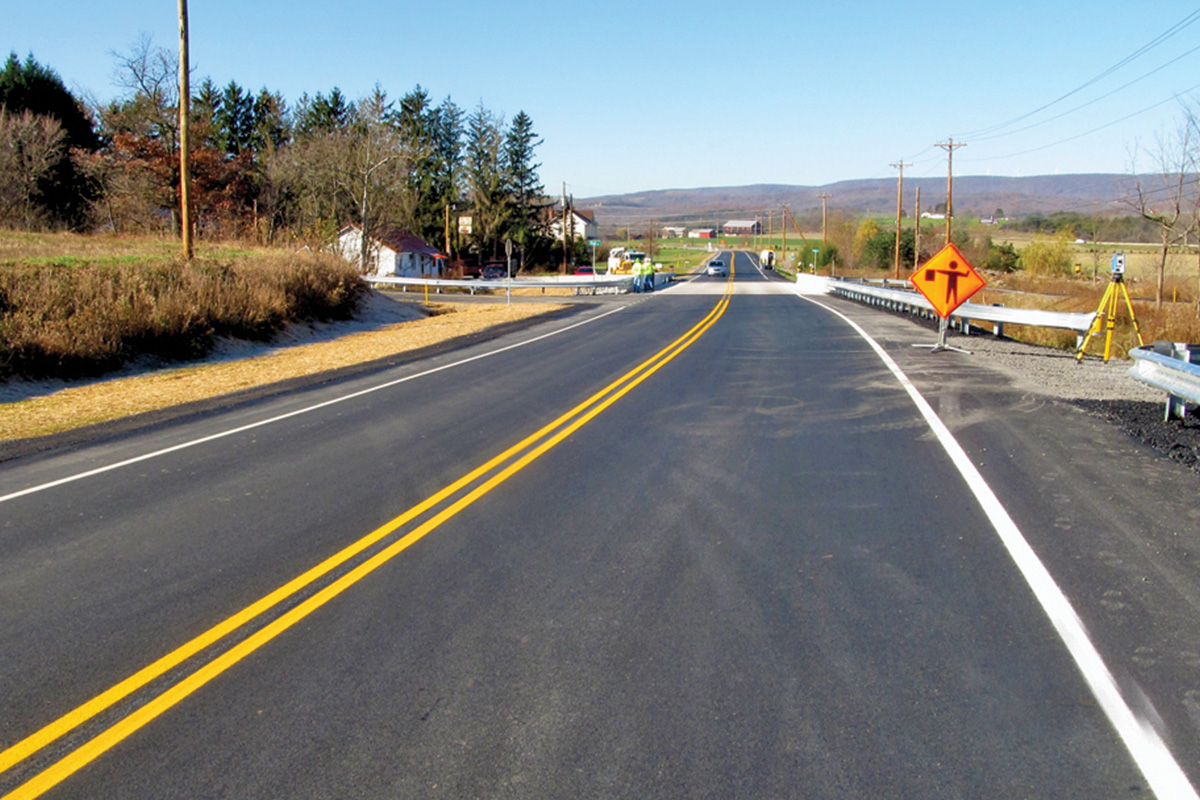

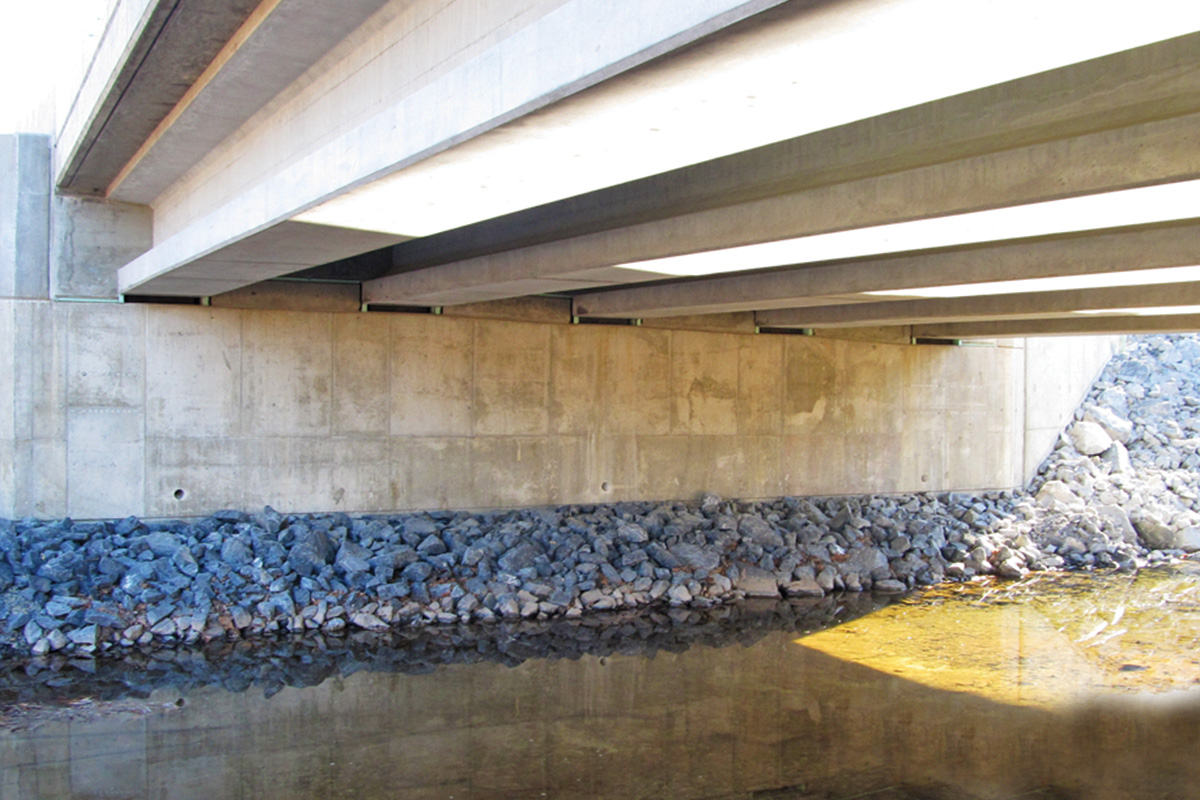

This project involved replacing the structure carrying SR 31 over the Raystown Branch of the Juniata River, near the intersection of Diehl Road (T-402). Built in 1931, the existing structure was an 87’, two-span concrete t-beam bridge. The replacement bridge used an 86’-10” span P/S concrete PA bulb tee beam superstructure on concrete abutments. The overall project included 1,715’-0” of approach roadway improvements including straightening of the alignment to eliminate existing sight distance challenges. Staged, partial width construction was utilized allowing improved alignment for this project.
