Sheetz Store Operation and Learning Center


  • Survey
  • Site Planning, Design, and Layout
  • Site Grading
  • Utility Coordination
  • Landscape Architecture
  • Lighting
  • ADA Compliant Sidewalks
  • Parking
  • Erosion and Sedimentation Control
  • Stormwater Management
  • NPDES Permit Application
  • Land Development Approvals


Sheetz, Inc., Blair County

Project Details

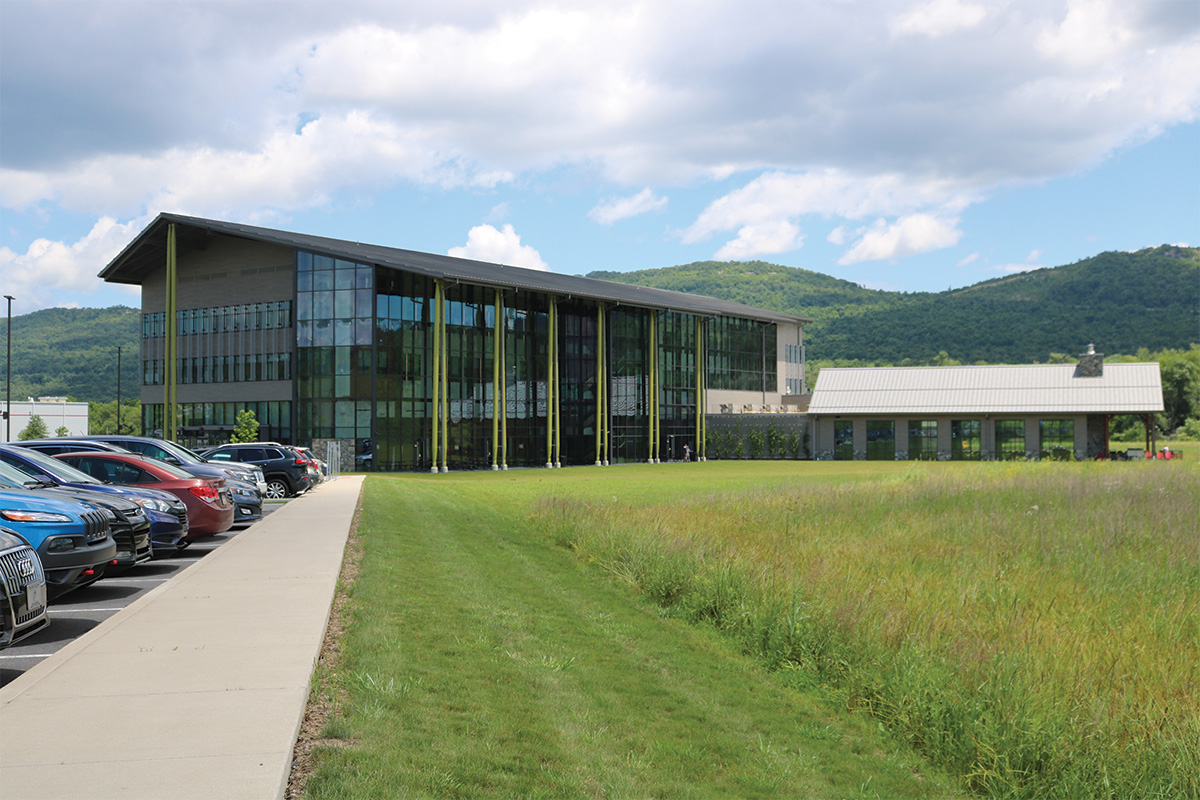

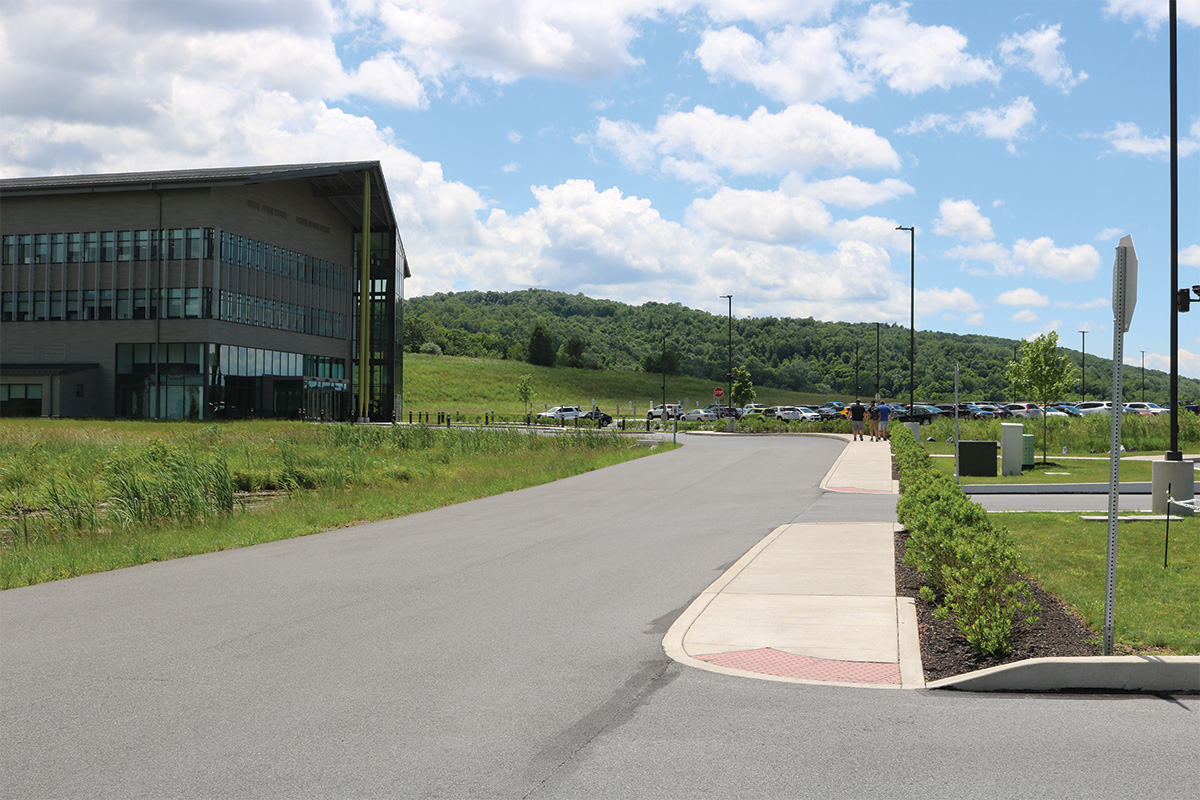

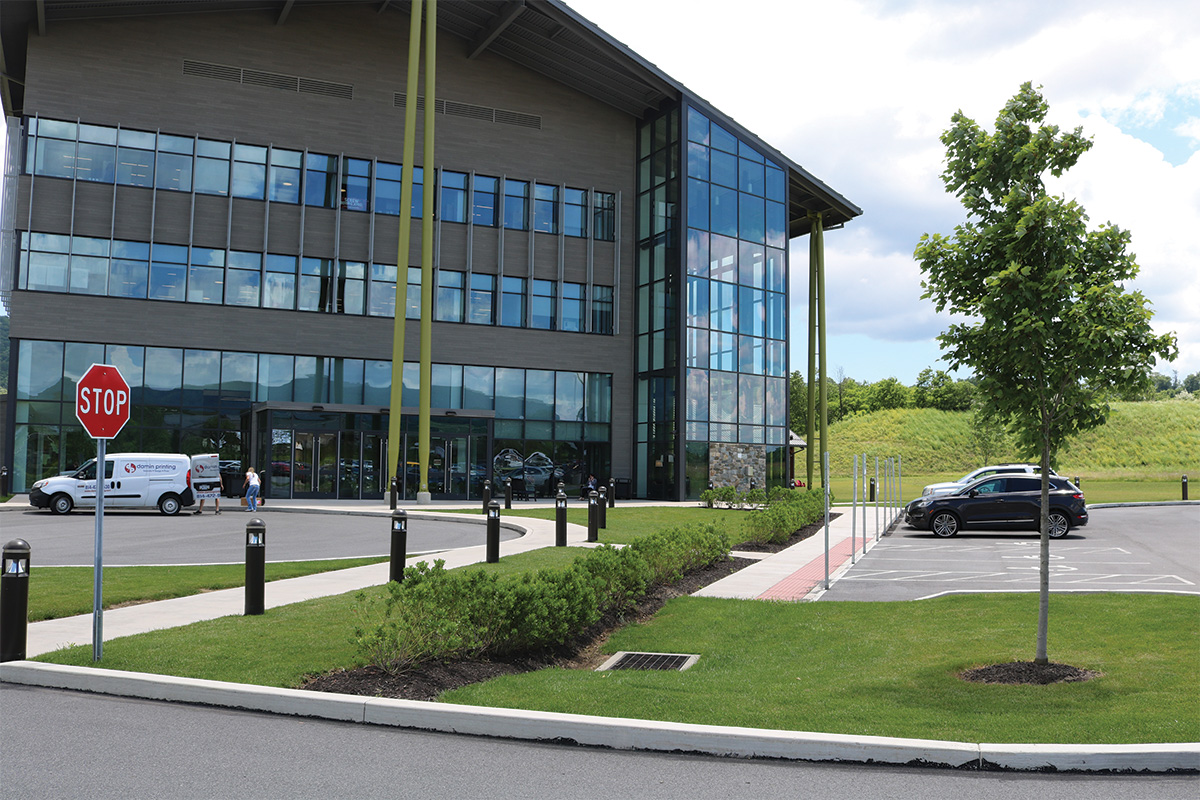

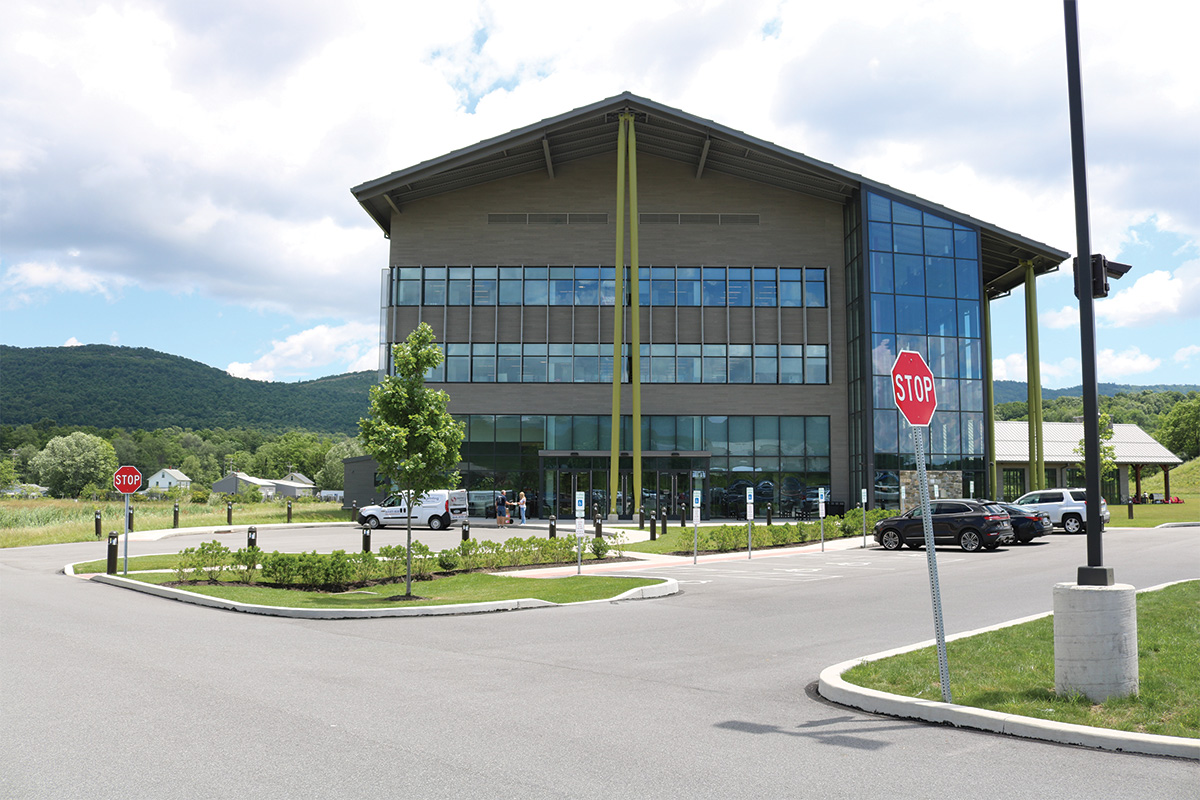

Keller Engineers was responsible for survey and site-civil design for the new 115,000 SF Sheetz Corporate Operations Center located on a 23.5-acre site in the Martin J. Marasco Business Park.

The project began with the reclamation of an old sand quarry formerly located on the project site. Reclamation required compaction testing to ensure future building stability.

The permitting process was challenging because wetlands on the property were recently reclassified as Exceptional Value (EV) due to changes in the FEMA floodplain boundary. Our design was able to avoid wetland impacts except for several wetland crossings. This resulted in the need for a Joint Permit and a wetland mitigation area. Additionally, because the site is tributary to EV wetlands, ABACT (Antidegradation Best Available Combination of Technologies) erosion and sedimentation control measures were required to protect the resources.

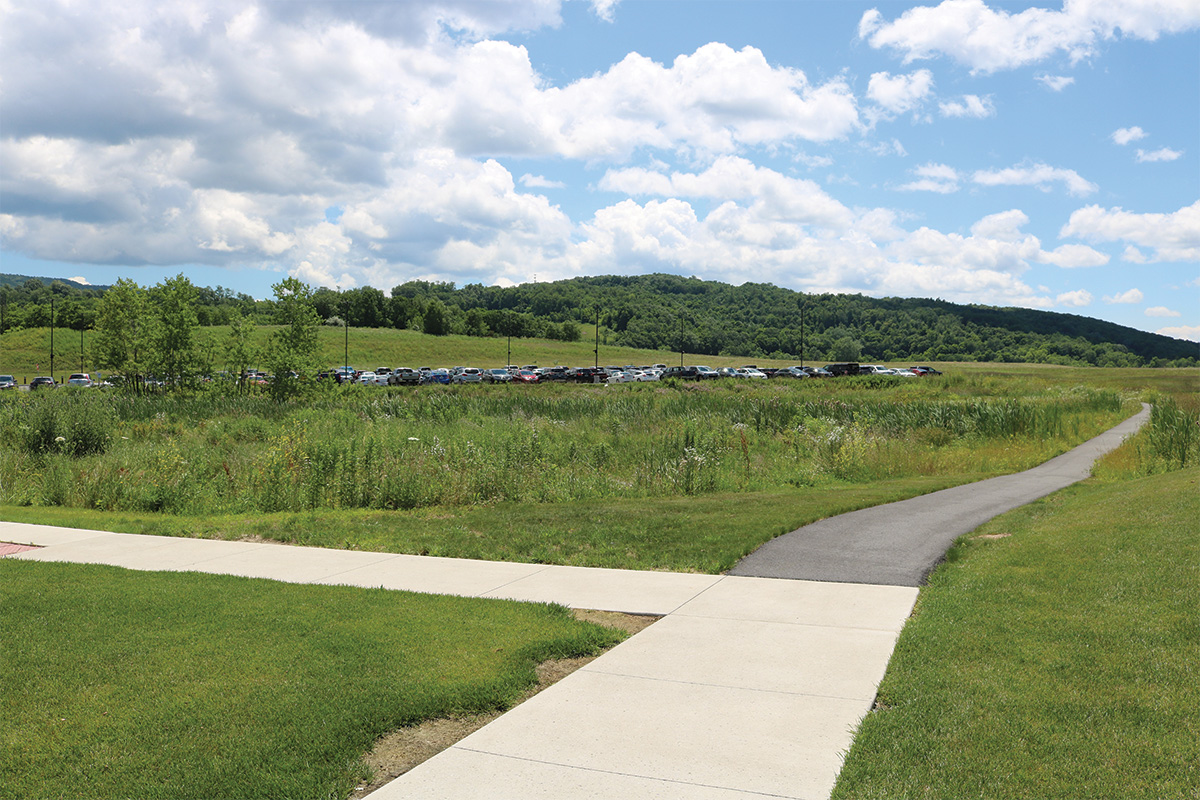

Stormwater management design was challenging due to high seasonal ground water which meant that infiltration Best Management Practices (BMPs) would not be feasible in many areas. Therefore, constructed wetlands were used to control the increase in runoff and improve water quality. This approach met the requirements of the Individual NPDES Permit.


Keller Engineers has been an extremely valuable asset for us in the development/construction of our store sites by providing accurate and timely structural and site development drawings and answers to related questions.  Their response and turn-around time to the Sheetz Store Development Department has been outstanding. We have no hesitation in turning to Keller Engineers for our store structural and site development needs. Joe S. Sheetz, Executive Vice President, Finance & Store Development Sheetz Corporation
